Sauna Electrical Requirements: 120V vs 240V, Amps, Circuits & Wiring
•
Electrical Code Audit: Dr. Alex Mercer, CSCS
•
Updated October 2026
Sauna electrical requirements vary substantially by sauna type, heater output, cabin size, and manufacturer. A compact infrared sauna may use a dedicated 120V circuit, while a traditional electric sauna heater commonly requires a dedicated 240V circuit with substantially higher amperage.
The most important buying rule is simple: do not choose the circuit from the sauna’s size alone. Start with the exact manufacturer’s electrical specification—voltage, maximum current or heater kW, phase, connection type and installation requirements—then have the installation evaluated against the electrical code applicable where the sauna will be installed.
Many compact 1–2 person infrared saunas are designed around 120V household power, while traditional electric sauna heaters and larger sauna systems commonly use 240V. There are important exceptions, so the product’s installation manual and nameplate are the source of truth. Current manufacturer documentation shows examples ranging from 120V/15A infrared systems to 240V/30A or higher traditional-heater configurations.
This article is for product-selection and planning information. Electrical installation, circuit modifications, hardwiring, breaker selection and code compliance should be handled by a qualified electrician and according to the manufacturer’s installation manual and applicable local requirements.
Quick Reference Specification: U.S. Residential Sauna Electrical Benchmarks
National Electrical Code standards dictate conductor gauges, dual-pole breaker ratings, and dedicated circuit topologies based on total kilowatt load. The diagnostic electrical specification matrix below synthesizes verified line voltages, current draws, wire requirements, and plug standards across primary residential sauna categories:
| Sauna Hardware Category | Nominal Voltage | Dedicated Circuit Amperage | Minimum Copper Wire Gauge | Receptacle / Termination Type |
|---|---|---|---|---|
| Compact 1–2 Person Infrared Cabin | 120V AC Single Phase | 15A or 20A Dedicated | 14 AWG (15A) / 12 AWG (20A) | NEMA 5-15P or NEMA 5-20P (T-blade) |
| Large 3–5 Person Infrared Cabin | 120V or 240V AC | 20A (120V) / 15A–20A (240V) | 12 AWG Copper | NEMA 5-20P, NEMA 6-15P, or NEMA 6-20P |
| Traditional Electric Heater (4.5–6.0 kW) | 240V AC Single Phase | 30A 2-Pole Breaker | 10 AWG Copper (THHN / Romex) | Direct Hardwired to Junction Box |
| Traditional Electric Heater (8.0–9.0 kW) | 240V AC Single Phase | 40A or 50A 2-Pole Breaker | 8 AWG or 6 AWG Copper | Direct Hardwired to External Relay Contactor |
| Hybrid Dual-Therapy Cabin | Dual Supply (120V & 240V) | 20A (120V) + 30A (240V) | 12 AWG and 10 AWG Dedicated | NEMA 5-20P Plug + Hardwired Stove Junction |

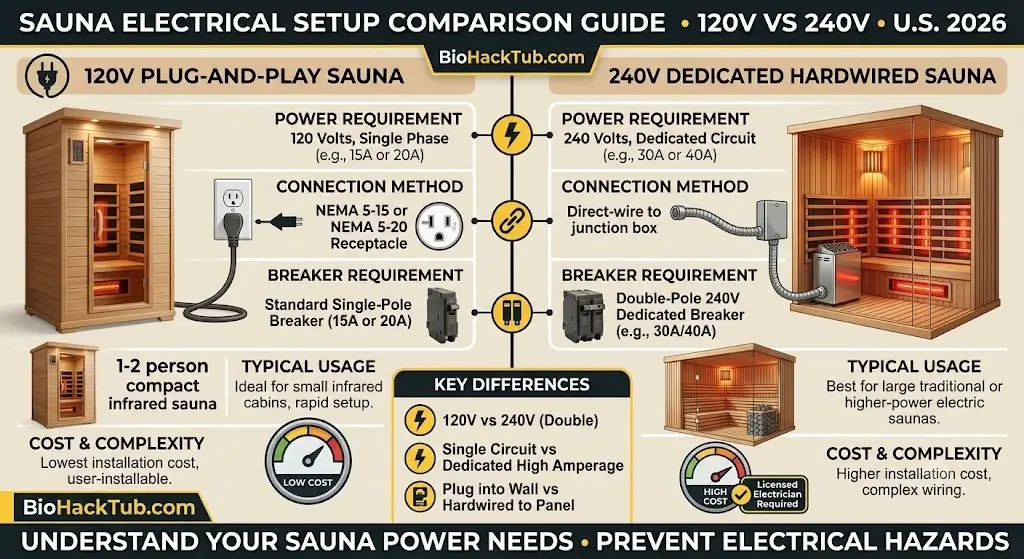

120V vs 240V Sauna Electrical Requirements
Cabin heating technology determines whether a residential installation operates on standard 120-volt lines or dedicated 240-volt circuits. The hardware operational profiles differ across core configurations:
| Sauna configuration | Common electrical pattern | Typical buyer consideration |
|---|---|---|
| Compact infrared | 120V, often 15–20A | Can be simpler to accommodate when the manufacturer specifies a suitable dedicated circuit. |
| Larger infrared | 120V or 240V depending on model | Never assume that two- or three-person capacity determines voltage by itself. |
| Traditional electric sauna | Usually 240V with dedicated circuit | Heater kW and manufacturer requirements drive the electrical design. |
| Hybrid sauna | May require more than one circuit | Infrared heating and traditional heating can have separate electrical requirements. |
| Wood-burning sauna | No electrical heater circuit | Electrical planning still applies to lights or accessories, while the stove requires separate installation considerations. |
These are broad categories, not universal specifications. Manufacturer documentation demonstrates substantial variation even within the infrared category. For example, Clearlight lists different models at 120V/15A, 120V/20A, 120V/30A and 240V/15–20A depending on configuration and upgrades. To explore how cabinet dimensions correlate with electrical demands, see our review of the best 1-person and 2-person infrared saunas for home.
Why Sauna Electrical Requirements Matter Before Buying
Inadequate subpanel capacity produces expensive electrical retrofit costs when buyers ignore circuit requirements prior to delivery. Electrical compatibility is one of the easiest sauna specifications to overlook because product listings often emphasize cabin dimensions, heater type, wood species and features before showing the power requirements.
That can create an expensive mismatch. A sauna may physically fit in a room while the home’s existing electrical infrastructure does not support the manufacturer’s specified circuit.
The electrical requirement can affect:
- Where the sauna can be installed
- Whether a dedicated circuit is available
- Whether an electrician is needed
- Whether the electrical panel has sufficient capacity
- Whether a new circuit or subpanel is required
- Installation cost
- Whether the selected outlet matches the sauna plug
- Whether local inspection or permitting requirements apply
Why Many Infrared Saunas Use 120V
Carbon radiant panel heaters warm body tissue directly rather than heating large ambient air volumes and stone thermal masses. Many compact infrared cabins are therefore designed for 120V operation.
Current manufacturer documentation provides several examples. Clearlight lists its Premier 1 and Premier 2 at 120V/15A, while its Premier 3 is listed at 120V/20A. Some configurations with additional heating or red-light equipment require higher electrical capacity.
Tylö’s Kiruna infrared installation manual likewise specifies 120V AC, a 20A service, a dedicated circuit and a NEMA 5-20R receptacle for that particular model.
Why Traditional Sauna Heaters Often Use 240V
High-wattage electric rock stoves require 240-volt service to halve continuous operating amperage and prevent wire overheating. Traditional electric sauna heaters can require substantially more power than compact infrared cabins.
Residential traditional heaters commonly fall into the several-kilowatt range. Because electrical power is related to voltage and current, moving from 120V to 240V allows a given power level to be delivered with approximately half the current under comparable conditions.
For example, a purely mathematical comparison:
3,000W ÷ 240V = 12.5A
That does not mean a 3,000W sauna should automatically be connected to either circuit. The calculation simply illustrates why higher-power residential heating equipment often uses 240V. The actual circuit, breaker, conductors and connection method must follow the heater manufacturer’s specifications and applicable electrical requirements.
Voltage, Amps, Watts and kW Explained
Ohm’s law correlates electrical potential and current flow to determine total power consumption in heating circuits. Four electrical terms appear repeatedly on sauna specification sheets:
| Term | Meaning | Why sauna buyers care |
|---|---|---|
| Volts (V) | Electrical potential | Must match the equipment’s required supply. |
| Amps (A) | Electrical current | Used to determine circuit and conductor requirements. |
| Watts (W) | Power | Shows the electrical power consumed by the equipment. |
| Kilowatts (kW) | 1,000 watts | Commonly used to describe sauna heater output. |
W ≈ V × A
Real equipment specifications can be more complicated because power factor, controls, multiple components and system configuration may affect actual electrical behavior. For purchasing purposes, use the manufacturer’s stated maximum current or circuit requirement rather than trying to reverse-engineer the entire electrical system from a wattage estimate.
What Does a Dedicated Sauna Circuit Mean?
Dedicated electrical circuits run directly from the main panel to serve a single appliance without shared branch outlets. This distinction matters because a sauna heater can represent a substantial electrical load.
If a manufacturer specifies a dedicated circuit, plugging the sauna into an outlet that happens to be physically close to the electrical panel does not make it dedicated.
The circuit configuration should be verified by a qualified electrician.
Manufacturer documentation frequently specifies dedicated circuits. Tylö’s infrared sauna manual, for example, specifies a 120V dedicated circuit for its referenced model.
Breaker Sizing: Why the Manufacturer Specification Wins
Circuit breaker amperage ratings match downstream conductor thermal limits rather than outlet faceplate voltages. A 120V circuit is not automatically a 15A circuit, and a 240V circuit is not automatically a 30A circuit. The correct electrical configuration depends on the equipment specification and applicable code.
A larger breaker is not a substitute for correctly sized conductors and equipment. If a sauna repeatedly trips its breaker, the cause needs to be diagnosed rather than bypassed with an oversized protective device.
Some manufacturers provide very specific requirements. Heavenly Heat, for example, lists separate 120V/15A and 120V/20A configurations for different sauna models and specifies 240V/20A or 240V/30A dedicated circuits for certain larger models.
Continuous Loads and Sauna Heating
The National Electrical Code mandates sizing continuous heating circuits at one hundred and twenty-five percent of maximum rated amperage. Sauna heaters can operate for extended periods, so electrical planning should account for the fact that heating equipment may represent a sustained load rather than a short-duration appliance load.
The exact treatment of a sauna load depends on the equipment, installation and applicable code provisions. This is another reason a generic online amp chart should not replace the manufacturer’s installation instructions or an electrician’s evaluation.
For U.S. installations, the current edition of the National Electrical Code as adopted and amended by the applicable jurisdiction is an important reference point. Local requirements can differ.

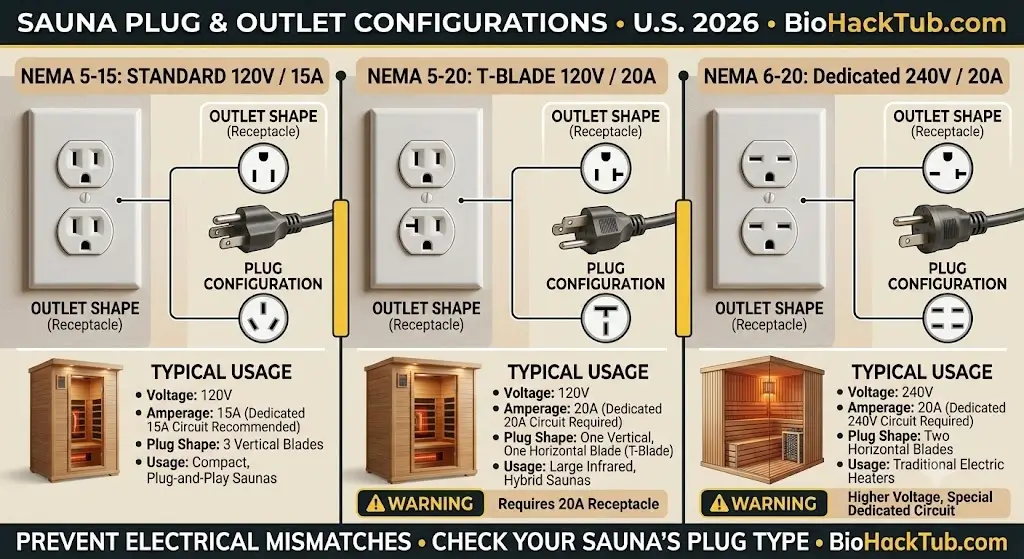

Sauna Outlet and Plug Types
NEMA receptacle geometries enforce safe physical separation between fifteen-amp and twenty-amp branch circuits. The plug shape is another specification that buyers should check before ordering.
Common configurations include:
- NEMA 5-15
- NEMA 5-20
- NEMA 6-series configurations for certain 240V equipment
- Locking receptacle configurations on some equipment
- Hardwired junction-box connections for some traditional heaters
Do not assume that a sauna described as “plug and play” can use any standard household outlet. For example, Tylö’s referenced Kiruna infrared installation manual specifies a NEMA 5-20R receptacle for its 20A 120V configuration.
Plug-In vs Hardwired Sauna Systems
Flexible appliance cords accommodate small infrared booths while permanent conduits connect high-output Finnish stone heaters. Review the operational differences across formats:
Plug-in infrared sauna
A plug-in system can simplify installation when the manufacturer’s design specifically permits it and the required dedicated circuit and receptacle are already available.
Hardwired traditional heater
Many traditional electric sauna heaters are connected directly through an electrical junction or control system rather than using a normal household plug. That is one reason traditional sauna installation should be planned with the electrician before purchasing the heater.
Hybrid sauna
A hybrid system can be more complicated because infrared panels and a traditional heater may have different electrical requirements.
Heavenly Heat provides an example in which its combination sauna uses a dedicated 120V/20A circuit for the infrared system and a separate 240V/30A circuit for the traditional heater.

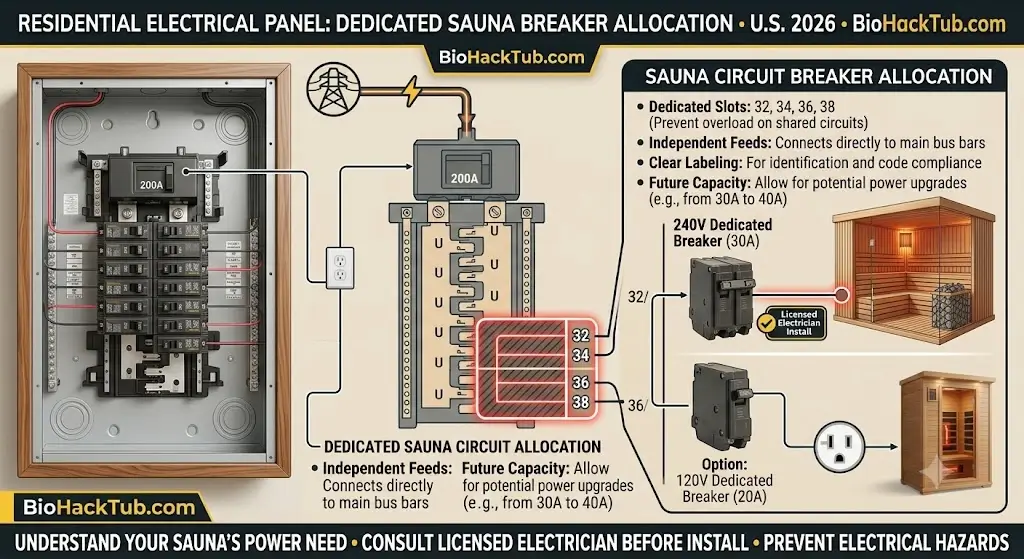

Does Your Electrical Panel Have Enough Capacity?
Load calculations verify that existing two-hundred-amp residential panels can accommodate extra dual-pole breakers. Having a 240V service in a house does not automatically mean there is unlimited capacity for a sauna. The electrician needs to consider the property’s existing electrical service and loads.
Relevant questions include:
- What is the home’s service capacity?
- Is there available breaker space?
- What other high-load equipment operates in the home?
- Where will the sauna circuit originate?
- How long is the circuit run?
- Will a subpanel be necessary?
- Are there local requirements affecting the installation?
This is particularly important when a home already has electric heating, an EV charger, electric range, dryer, heat pump or other high-load equipment.
Why Extension Cords Are Not a Sauna Installation Strategy
Undersized extension cord conductors produce dangerous voltage drops and elevate fire hazards during continuous heating. A consumer sauna should not be treated like a lamp or small electronic device that can simply be moved farther from the outlet with an extension cord.
If the manufacturer specifies a dedicated receptacle or hardwired installation, that requirement should be followed.
Tylö explicitly warns against using extension cords or undersized/inappropriately rated wiring for its referenced infrared sauna installation.
If the sauna cannot reach its required outlet with the supplied connection, the correct solution is to have the electrical installation evaluated—not to improvise the power connection.
GFCI and Sauna Electrical Requirements
Ground fault circuit interrupters prevent lethal electrical shock in wet or outdoor sauna environments. Requirements can vary based on whether the sauna is indoors, outdoors, near water, and how the equipment is classified and installed.
Do not assume that every sauna has the same GFCI configuration.
The manufacturer’s installation manual and local electrical requirements should be checked before installation.
Outdoor Sauna Electrical Requirements
Exterior backyard installations require weatherproof NEMA enclosures and underground buried conduits. The electrical design must account for the outdoor location, weather exposure, equipment ratings, wiring method, grounding and local requirements.
An indoor sauna specification should not automatically be transferred to an outdoor installation.
Manufacturer specifications demonstrate this difference. Clearlight lists its Outdoor 2 at 240V/15A and Outdoor 5 at 240V/20A, illustrating that outdoor models can have specific electrical configurations rather than simply copying the requirements of smaller indoor units. For freestanding barrel and cabin kits, consult our review of the best outdoor saunas.
Infrared Sauna Electrical Requirements: Real Manufacturer Examples
Brand documentation proves that cabin size and auxiliary features shift electrical requirements from fifteen to thirty amps. Review manufacturer-published electrical requirements below:
| Example | Published requirement | What it demonstrates |
|---|---|---|
| Clearlight Premier 1 | 120V / 15A | Some compact infrared systems can use relatively modest electrical service. |
| Clearlight Premier 3 | 120V / 20A | Larger cabin configurations can require more current even while remaining at 120V. |
| Clearlight Sanctuary 3 | 240V / 15A | Some infrared cabins move to 240V. |
| Clearlight Sanctuary 5 | 240V / 20A | Large infrared cabins can have substantially different electrical requirements. |
| Tylö Kiruna 3 infrared | 120V / 20A | A specific model may require a dedicated 20A circuit and matching receptacle. |
Sources: manufacturer-published electrical requirements from Clearlight and Tylö.
Traditional Sauna Heater Electrical Requirements
Heater power ratings in kilowatts determine whether installations require thirty, forty, or fifty-amp breakers. Traditional electric sauna heaters generally require substantially more electrical power than compact infrared cabins.
| Heater class | General planning range | Important qualification |
|---|---|---|
| Small traditional heater | Often 240V | Exact amperage depends on heater model and output. |
| Mid-size residential heater | Often several kW at 240V | Dedicated circuit commonly required. |
| Larger residential heater | Higher-kW 240V systems | May require larger conductors, breaker and potentially additional electrical planning. |
Do not use this table to select a breaker. Its purpose is to show the scale of the difference between traditional heaters and small plug-in infrared cabins. To see how these heating mechanisms differ fundamentally, check our guide on infrared vs traditional sauna thermodynamics.
How Much Electricity Does a Sauna Use?
Operational power consumption equals heater kilowatt ratings multiplied by active heating hours. Electrical consumption depends primarily on power draw and operating time.
For example, a hypothetical 1.5 kW sauna operating continuously for one hour would consume approximately:
Actual consumption can be lower or vary over time because thermostatic systems may cycle heating elements rather than drawing their maximum rated power continuously. For purchasing decisions, the manufacturer’s rated power is the appropriate starting point; real household consumption depends on the heating cycle, ambient temperature, session duration and control strategy.
How to Estimate Sauna Electricity Cost
Total session expenditure calculates by multiplying kilowatt-hours consumed by local utility rates. Once the estimated energy use is known, multiply it by the electricity rate.
For example, if a hypothetical sauna used 2 kWh and the electricity rate were $0.20/kWh:
This is an example calculation, not a national U.S. electricity price. Electricity rates vary significantly by utility and state.
What to Check on an Amazon Sauna Listing
Marketplace technical audits require confirming explicit amperage and plug configurations prior to ordering. For BioHackTub’s Amazon-only product strategy, electrical specifications should be treated as a mandatory screening criterion.
Before considering a sauna for a commercial roundup, check whether the Amazon listing or manufacturer’s documentation clearly identifies:
- Voltage
- Maximum amperage
- Rated power or heater wattage
- Plug type
- Dedicated-circuit requirement
- Whether the product is plug-in or hardwired
- Number of power cords
- Whether accessories add electrical load
- Indoor or outdoor rating
- Installation instructions
Sauna Electrical Pre-Purchase Checklist
Systematic pre-purchase verification confirms circuit compatibility, panel capacity, and professional inspection requirements. Answer these questions before purchasing:
- What exact model am I buying?
- What voltage does that model require?
- What is its maximum current requirement?
- What is the rated heater power?
- Does it require a dedicated circuit?
- What receptacle or connection does it require?
- Is it plug-in or hardwired?
- Does the model have multiple power cords?
- Will additional lighting or red-light equipment change the electrical requirement?
- Is the installation indoors or outdoors?
- Does the home’s electrical panel have appropriate capacity?
- Has the planned installation been reviewed by a qualified electrician?
Model → electrical specification → installation location → electrical capacity → professional verification → purchase.
Do not reverse that sequence by buying the sauna first and investigating electrical compatibility after delivery.
Electrical Red Flags in Sauna Product Listings
Omitted circuit amperage and conflicting voltage ratings indicate unverified seller specifications. Be cautious when an Amazon listing contains any of the following:
- “Plug and play” without a stated circuit requirement
- Voltage listed but amperage omitted
- Multiple electrical accessories with no combined load information
- Conflicting voltage specifications in different sections
- Different electrical specifications between the product title and manual
- No installation manual
- No model-specific electrical documentation
- Claims that a 240V sauna can simply use a standard household outlet
- Advice to use an extension cord to reach the sauna
A particularly important warning is contradictory electrical information. If the Amazon listing says 120V but the manufacturer’s manual says 240V, stop the purchase decision until the discrepancy is resolved.
The Most Important Difference: 120V Does Not Mean “Low Power”
One hundred and twenty-volt heating appliances draw substantial current that can max out fifteen-amp household breakers. Voltage and power are different specifications. A 120V appliance can still require substantial current.
For example, a hypothetical 1,800W load at 120V would mathematically correspond to:
That is already the full nominal current of a 15A circuit before considering how the equipment is classified and installed. This is why the exact manufacturer’s maximum-current specification matters more than simply seeing “120V” on a product page.
Why 240V Can Be More Practical for High-Power Sauna Heaters
Doubling line voltage halves total amperage draw to enable standard conductor sizes in residential installations. The advantage of higher voltage for high-power heating is straightforward electrical math.
For the same theoretical power:
4,800W ÷ 240V = 20A
The 240V configuration delivers the same theoretical power at approximately half the current. This is one reason traditional residential sauna heaters commonly use 240V systems. It does not, however, tell you which breaker or conductor size to install. Those decisions remain model- and installation-specific.
Sauna Electrical Requirements FAQ
Direct technical responses clarify common homeowner questions regarding voltage selection, dedicated circuits, and breaker sizing. Key answers are detailed below:
Do infrared saunas need 240V?
Not necessarily. Many compact infrared saunas use 120V, while other infrared models use 240V. Clearlight’s published specifications show examples across both voltage classes.
Can an infrared sauna use a normal household outlet?
Some are specifically designed for a standard household receptacle, but others require a dedicated 20A circuit or a different configuration. Check the exact model’s electrical specification.
Do traditional electric saunas need 240V?
Many residential traditional electric sauna heaters use 240V because their heating power is substantially higher than that of many compact infrared systems. Exact requirements vary by heater.
Does a sauna need a dedicated circuit?
Many manufacturers specify a dedicated circuit for their sauna or heater. The exact requirement should come from the model-specific installation documentation.
Can I use an extension cord with a sauna?
You should not use an extension cord as a workaround for a sauna that requires a dedicated or specially configured circuit. Tylö’s installation manual specifically warns against extension cords and undersized or improperly rated wiring for its referenced infrared model.
How many amps does a home sauna use?
There is no universal number. Compact infrared models may be specified around 15–20A at 120V, while larger infrared and traditional systems can require 240V and substantially different amperage.
What outlet does a 120V infrared sauna use?
The answer depends on the model. NEMA 5-15 and NEMA 5-20 configurations are examples used by some manufacturers. Tylö’s referenced 20A infrared model specifies a NEMA 5-20R receptacle.
Can a sauna share a circuit with other appliances?
If the manufacturer specifies a dedicated circuit, it should not be treated as a shared circuit. Verify the installation requirements with a qualified electrician.
Do sauna heaters need GFCI protection?
The applicable requirement depends on the equipment and installation location. Follow the manufacturer’s instructions and local electrical requirements rather than assuming one GFCI configuration applies to every sauna.
Can I install a 240V sauna myself?
Electrical work involving new circuits, breaker panels, hardwiring or other modifications should be handled by a qualified electrician and performed according to applicable code and the manufacturer’s installation requirements.
How much electricity does an infrared sauna use?
A simple estimate is power in kilowatts multiplied by operating hours. Actual consumption can vary because heating systems may cycle on and off during operation.
Should I buy a sauna before checking electrical requirements?
No. Electrical compatibility should be verified before purchase, especially for 240V or higher-amperage systems.
Bottom Line: Check the Electrical Specification Before You Buy
Starting with manufacturer nameplate specifications prevents electrical installation delays and costly home wiring overhauls. The safest way to approach sauna electrical requirements is to ignore generic assumptions and start with the exact product documentation.
A compact infrared sauna may work with a dedicated 120V circuit, while a larger infrared cabin or traditional electric heater may require 240V service. Manufacturer specifications show that even products in the same general category can have very different requirements.
For an Amazon purchase, the minimum electrical information worth confirming is:
- Voltage
- Maximum amperage
- Power rating
- Dedicated-circuit requirement
- Plug or hardwire configuration
- Receptacle type
- Installation manual
- Indoor/outdoor electrical requirements
